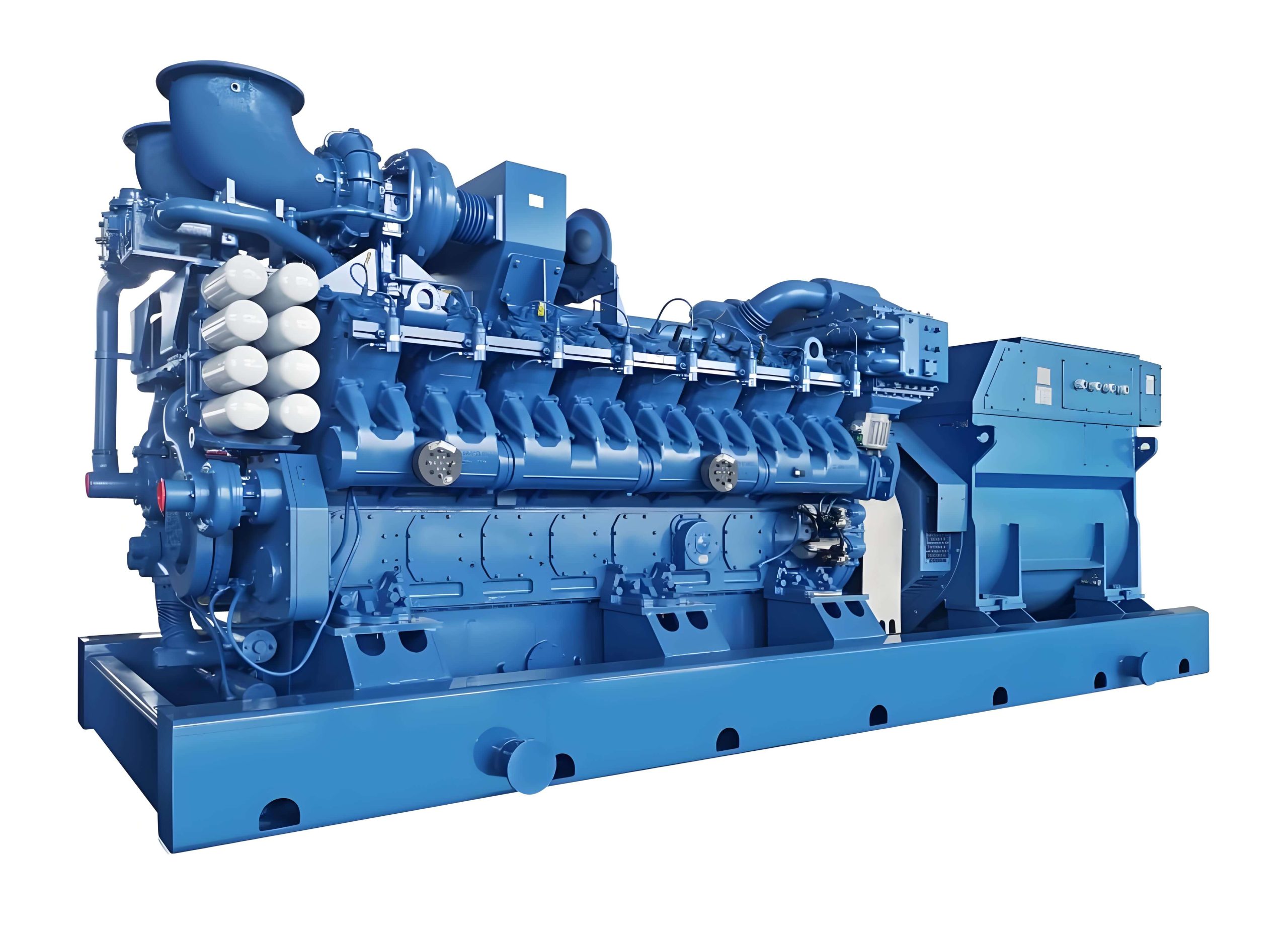

Gas Generator Sets Parameters powered by Yuchai Engines

Founded in 1951 and headquartered in Yulin, Guangxi, Yuchai Group is a leading state-owned enterprise specializing in capital operations and asset management, with over 30 subsidiaries and 16,000 employees. As one of China’s most comprehensive internal combustion engine manufacturers, Yuchai operates multiple industrial bases across China, achieving an annual sales volume of nearly 500 billion RMB.

Yuchai ranks among China’s top 500 enterprises, top 10 machinery companies, and most valuable brands with a brand value exceeding 756 billion RMB. The company pioneers green engine technology, launching China’s first engines compliant with China IV to China VI emission standards. Yuchai offers a diverse product range, including diesel, gas, fuel cells, hybrid, and electric power systems, covering 15–4200 kW applications in commercial vehicles, construction, marine, and power generation.

With three R&D centers in China and Europe, over 6,700 patents, and advanced test labs, Yuchai leads the industry in innovation. Supported by a global service network with 13 overseas offices, 228 service agents, and 846 service centers, Yuchai continues to provide efficient, reliable, and sustainable power solutions worldwide.

50hz, 1500rpm, 3 Phase, 230v/400v, PF 0.8

Genset Model Rated Power (kWe) Gas Engine Model Alternator Gas Consumption at 100% Load (Nm³/hr) Cylinders Displacement (Liters) Overall Dimension (mm)
CPYG63 50 YC4D90N-D30 Versatile Alternator Options 17 4, in-line 04.21 1900L×980W×1450H
CPYG75 60 YC4G115N-D30 Versatile Alternator Options 21 4, in-line 0,225 2500L×1200W×1550H
CPYG100 80 YC6G155N-D30 Versatile Alternator Options 27 6, in-line 07.26 2800L×1200W×1550H
CPYG125 100 YC6G180N-D30 Versatile Alternator Options 35 6, in-line 07.26 2800L×1200W×1550H
CPYG200 160 YC6MK270N-D30 Versatile Alternator Options 53 6, in-line 10.34 3500L×1300W×1950H
CPYG225 180 YC6MK315N-D30 Versatile Alternator Options 60 6, in-line 10.34 3500L×1300W×1950H
CPYG250 200 YC6K350N-D30 Versatile Alternator Options 63 6, in-line 0,565277778 3750L×1550W×2100H
CPYG313 250 YC6K420N-D30 Versatile Alternator Options 77 6, in-line 0,565277778 3850L×1550W×2100H
CPYG313 250 YC6T450N-D30 Versatile Alternator Options 78 6, in-line 16.35 3950L×1600W×2100H
CPYG438 350 YC6T600N-D32 Versatile Alternator Options 105 6, in-line 19.06 4100L×1600W×2300H
CPYG438 350 YC6T600N-D31 Versatile Alternator Options 107 6, in-line 19.06 4100L×1600W×2300H
CPYG500 400 YC6T750N-D30 Versatile Alternator Options 117 6, in-line 39.58.00 4900L×2240W×2540H
CPYG625 500 YC6C935N-D30 Versatile Alternator Options 147 6, in-line 39.58.00 5200L×2240W×2540H
CPYG750 600 YC6C1020N-D30 Versatile Alternator Options 176 6, in-line 39.58.00 5500L×2240W×2540H
CPYG1000 800 YC12VTD1350N-D30 Versatile Alternator Options 240 12, Vee 39.02.00 5300L×2550W×2520H
CPYG1000 800 YC12VC1320N-D31 (1000rpm) Versatile Alternator Options 235 12, Vee 79.17.00 6100L×2580W×2600H
CPYG1250 1000 YC12VC1680N-D31 (1000rpm) Versatile Alternator Options 294 12, Vee 79.17.00 6100L×2580W×2600H
CPYG1875 1500 YC16VC2470N-D30 (1000rpm) Versatile Alternator Options 395 16, Vee 105.06.00 6033L×2090W×2744H
CPYG2500 2000 YC16VC3300N-D30 (1000rpm) Versatile Alternator Options 526 16, Vee 105.06.00 6179L×2387W×2637H

Remark:

YC6K350N-D30, YC6K420N-D30, YC6T600N-D32 engine request the medium or high-pressure gas supply source above 400 kPa.Other engines use a low-pressure gas source ranging from 20 to 40 kPa.

 DEFINITION OF RATED POWER

Rated power is available for an unlimited number of hours per year in a variable load application. However, the variable load should not exceed an average of 70% of this rating during any 12-hour operating period.

Alternatively, the power is available for supplying utility power at a constant 75% of the rated value for an unlimited number of hours per year. No overload capability is provided for this rating.

The listed rated power is based on the following standard conditions:

  • 100 kPa barometric pressure (equivalent to an altitude of 110m)
  • 25°C air inlet temperature
  • 30% relative humidity
  • Natural gas fuel with a methane number of 90 and a lower heating value (LHV) of 36.3 MJ/Nm³
