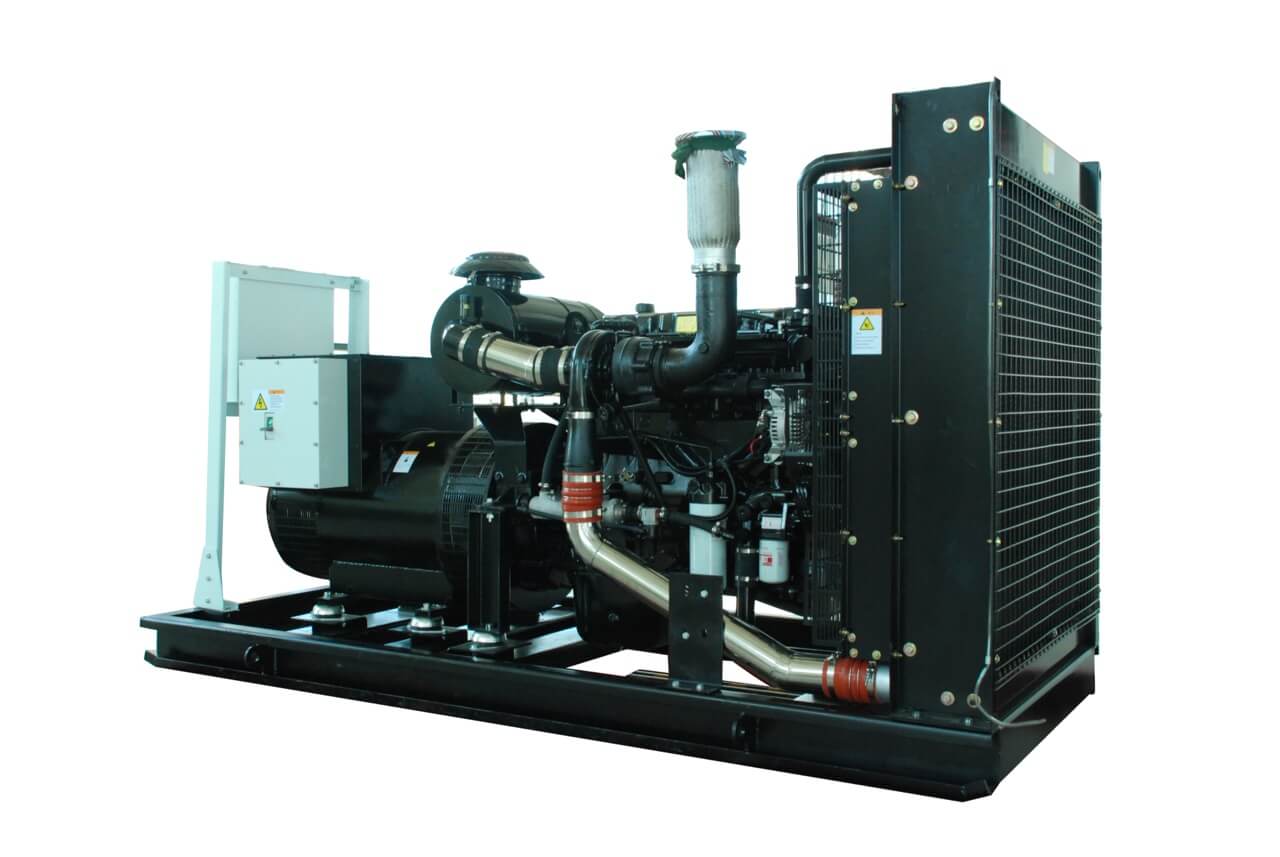

Diesel Generator Sets with Dongfeng Cummins Engines
Powered by Cummins DCEC
Power Range: 30 kVA – 550 kVA
Features of Cummins DCEC Power Gensets:
- Powered by Reliable Dongfeng Cummins Engines (DCEC): Ensuring robust performance and high efficiency.
- Multiple Controller Options: Choose from Deepsea, Mebay, ComAp, or Smartgen to suit your specific operational needs.
- Versatile Generator Options: Compatible with Stamford, Leroy Somer, Marathon, and Cumsen Power generators for maximum flexibility.
- Customizable Breaker Options: Includes Schneider, ABB, CHINT, or Delixi breakers to match diverse project requirements.
- Radiator Designed for Indonesia’s Marine Environment: Optimized for the local weather and temperature conditions to ensure durability and efficiency.
- Maintenance-Free Starting Battery: Long-lasting and dependable for hassle-free operation.
- Wide Range of Configurations Available: Open type genset, silent type genset, container type genset, and trailer type genset are all available to meet different application needs.
50hz, 1500rpm, 3 Phase, 230v/400v, PF 0.8
| Prime Power | Standby Power | Cummins DCEC | Open Type | Silent Type | Download | ||||
|---|---|---|---|---|---|---|---|---|---|
| kW | kVA | kW | kVA | Engine Model | L*W*H (mm) | Weight (Kg) | L*W*H (mm) | Weight (Kg) | Datasheet |
| 17 | 21,3 | 19 | 23,8 | 4B3.9-G11 | 1700*930*1470 | 730 | 2250*1080*1255 | 1150 | 4B3.9-G11.pdf |
| 27 | 33,8 | 25 | 31,3 | 4B3.9-G12 | 1700*930*1470 | 740 | 2250*1080*1255 | 1150 | 4B3.9-G12.pdf |
| 22 | 27,5 | 24 | 30 | 4B3.9-G1 | 1700*930*1470 | 780 | 2250*1080*1255 | 1150 | 4B3.9-G1.pdf |
| 22 | 27,5 | 24 | 30 | 4B3.9-G2 | 1700*930*1470 | 780 | 2250*1080*1255 | 1150 | 4B3.9-G2.pdf |
| 32 | 40 | 35 | 43,8 | 4BT3.9-G1 | 1700*930*1470 | 780 | 2250*1080*1255 | 1150 | 4BT3.9-G1.pdf |
| 32 | 40 | 35 | 43,8 | 4BT3.9-G2 | 1700*930*1470 | 780 | 2250*1080*1255 | 1150 | 4BT3.9-G2.pdf |
| 45 | 56,3 | 50 | 62,5 | 4BTA3.9-G2 | 1900*930*1500 | 940 | 2670*1080*1905 | 4500 | 4BTA3.9-G2.pdf |
| 52 | 65 | 56 | 70 | 4BTA3.9-G2 | 1900*930*1500 | 960 | 2670*1080*1905 | 1500 | 4BTA3.9-G2.pdf |
| 64 | 80 | 72 | 90 | 4BTA3.9-G11 | 1900*930*1500 | 960 | 2670*1080*1905 | 4500 | 4BTA3.9-G11.pdf |
| 76 | 95 | 83 | 103,8 | 4BTA3.9-G13 | 2250*930*1600 | 1100 | 2670*1080*1905 | 1500 | 4BTA3.9-G13.pdf |
| 75 | 93,8 | 82 | 102,5 | 6BT5.9-G1 | 2150*930*1560 | 1130 | 2900*1080*2000 | 1860 | 6BT5.9-G1.pdf |
| 75 | 93,8 | 82 | 102,5 | 6BT5.9-G2 | 2150*930*1560 | 1130 | 2900*1080*2000 | 1860 | 6BT5.9-G2.pdf |
| 84 | 105 | 92 | 115 | 6BT5.9-G2 | 2150*930*1560 | 4200 | 2900*1080*2000 | 1860 | 6BT5.9-G2.pdf |
| 92 | 115 | 100 | 125 | 6BTA5.9-G2 | 2150*930*1560 | 1200 | 3200*1080*2000 | 1920 | 6BTA5.9-G2.pdf |
| 110 | 138 | 120 | 150 | 6BTAA5.9-G2 | 2230*930*1560 | 1250 | 3200*1080*2000 | 1980 | 6BTAA5.9-G2.pdf |
| 120 | 150 | 132 | 165 | 6BTAA5.9-G12 | 2400*930*1500 | 1280 | 3200*1080*2000 | 2030 | 6BTAA5.9-G12.pdf |
| 145 | 181,3 | 160 | 200 | 6CTA8.3-G1 | 2360*960*1690 | 1550 | 3500*1080*2120 | 2380 | 6CTA8.3-G1.pdf |
| 145 | 181,3 | 160 | 200 | 6CTA8.3-G2 | 2360*960*1690 | 1550 | 3500*1080*2120 | 2380 | 6CTA8.3-G2.pdf |
| 160 | 200 | 172 | 215 | 6CTAA8.3-G2 | 2500*970*1740 | 1560 | 3500*1080*2120 | 2490 | 6CTAA8.3-G2.pdf |
| 200 | 250 | 211 | 263,8 | 6LTAA8.9-G2 | 2550*1050*1860 | 1800 | 3700*1090*2180 | 2760 | 6LTAA8.9-G2.pdf |
| 200 | 250 | 220 | 275 | 6LTAA8.9-G3 | 2550*1050*1860 | 1800 | 3700*1090*2180 | 2760 | 6LTAA8.9-G3.pdf |
| 216 | 270 | 240 | 300 | 6LTAA9.5-G3 | 2840*1150*1850 | 2130 | 4000*1400*2260 | 4120 | 6LTAA9.5-G3.pdf |
| 256 | 320 | 280 | 350 | 6LTAA9.5-G1 | 2840*1150*1850 | 2130 | 4000*4400*2260 | 4120 | 6LTAA9.5-G1.pdf |
| 310 | 387,5 | 340 | 425 | 6ZTAA13-G3 | 3210*1410*2110 | 3180 | 4350*1600*2260 | 4400 | 6ZTAA13-G3.pdf |
| 350 | 437,5 | 380 | 475 | 6ZTAA13-G2 | 3210*1410*2110 | 3180 | 4350*1600*2260 | 4400 | 6ZTAA13-G2.pdf |
| 350 | 437,5 | 380 | 475 | 6ZTAA13-G4 | 3210*1410*2110 | 3180 | 4350*4600*2260 | 4400 | 6ZTAA13-G4.pdf |
| 350 | 437,5 | 375 | 468,8 | QSZ13-G2 | 3210*1410*2110 | 3180 | 4350*1600*2260 | 4400 | QSZ13-G2.pdf |
| 380 | 475 | 400 | 500 | QSZ13-G3 | 3210*1410*2110 | 3180 | 4350*1600*2260 | 4400 | QSZ13-G3.pdf |
| 360 | 450 | 400 | 500 | QSZ13-G5 | 3270*1270*2210 | 3180 | 4350*1600*2260 | 4400 | QSZ13-G5.pdf |
| 400 | 500 | 440 | 550 | QSZ13-G10 | 3430*1270*2210 | 3350 | 4350*1600*2260 | 4400 | QSZ13-G10.pdf |
| 48 | 60 | 56 | 70 | QSB3.9-G2 | 1900*830*1550 | 960 | 2670*1080*1905 | 1500 | QSB3.9-G2.pdf |
| 64 | 80 | 72 | 90 | QSB3.9-G3 | 1900*830*1550 | 960 | 2670*1080*1905 | 1500 | QSB3.9-G3.pdf |
| 80 | 100 | 88 | 110 | QSB5.9-G2 | 2200*900*1840 | 1200 | 3200*1080*2000 | 1910 | QSB5.9-G2.pdf |
| 100 | 125 | 112 | 140 | QSB5.9-G3 | 2200*900*1840 | 1200 | 3200*4080*2000 | 1980 | QSB5.9-G3.pdf |
| 120 | 150 | 132 | 165 | QSB6.7-G3 | 2340*1100*1950 | 1300 | 3500*1280*2120 | 2080 | QSB6.7-G3.pdf |
| 144 | 180 | 160 | 200 | QSB6.7-G4 | 2340*1100*1950 | 1300 | 3500*1280*2120 | 2130 | QSB6.7-G4.pdf |
| 160 | 200 | 176 | 220 | QSL8.9-G2 | 2640*1100*2030 | 1800 | 3850*1400*2370 | 3030 | QSL8.9-G2.pdf |
| 180 | 225 | 200 | 250 | QSL8.9-G3 | 2640*1100*2030 | 1800 | 3850*4400*2370 | 3150 | QSL8.9-G3.pdf |
| 200 | 250 | 220 | 275 | QSL8.9-G4 | 2640*1100*2030 | 1800 | 3850*1400*2370 | 3150 | QSL8.9-G4.pdf |
